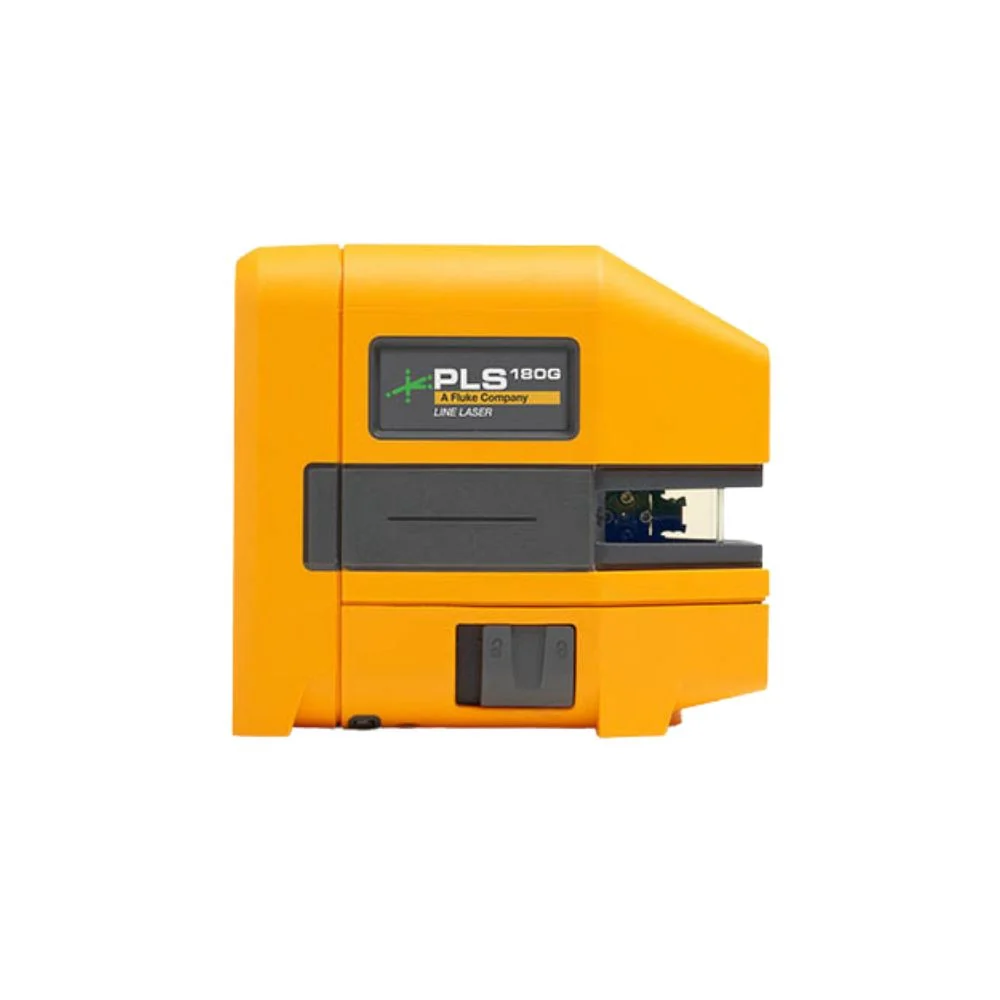

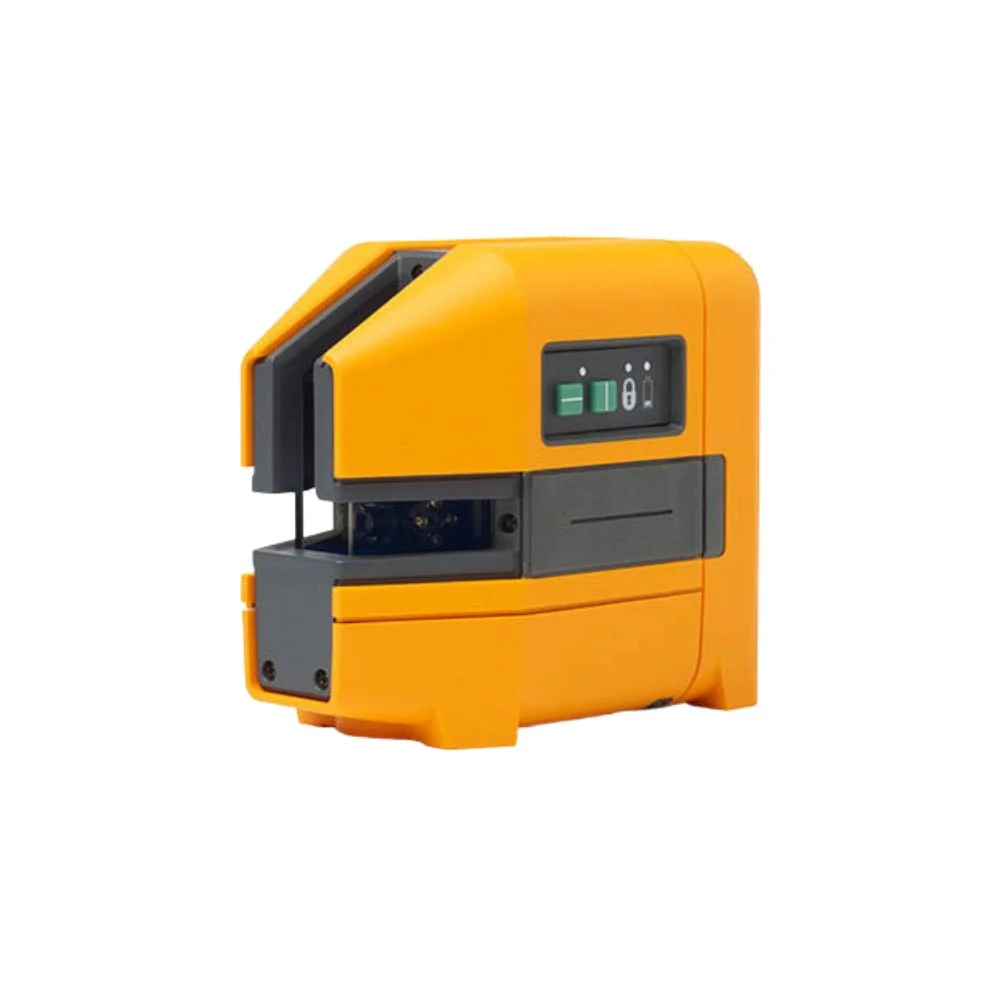

Pacific Laser Systems 5017287 PLS 180G Z, Cross Line Green Laser Bare Tool

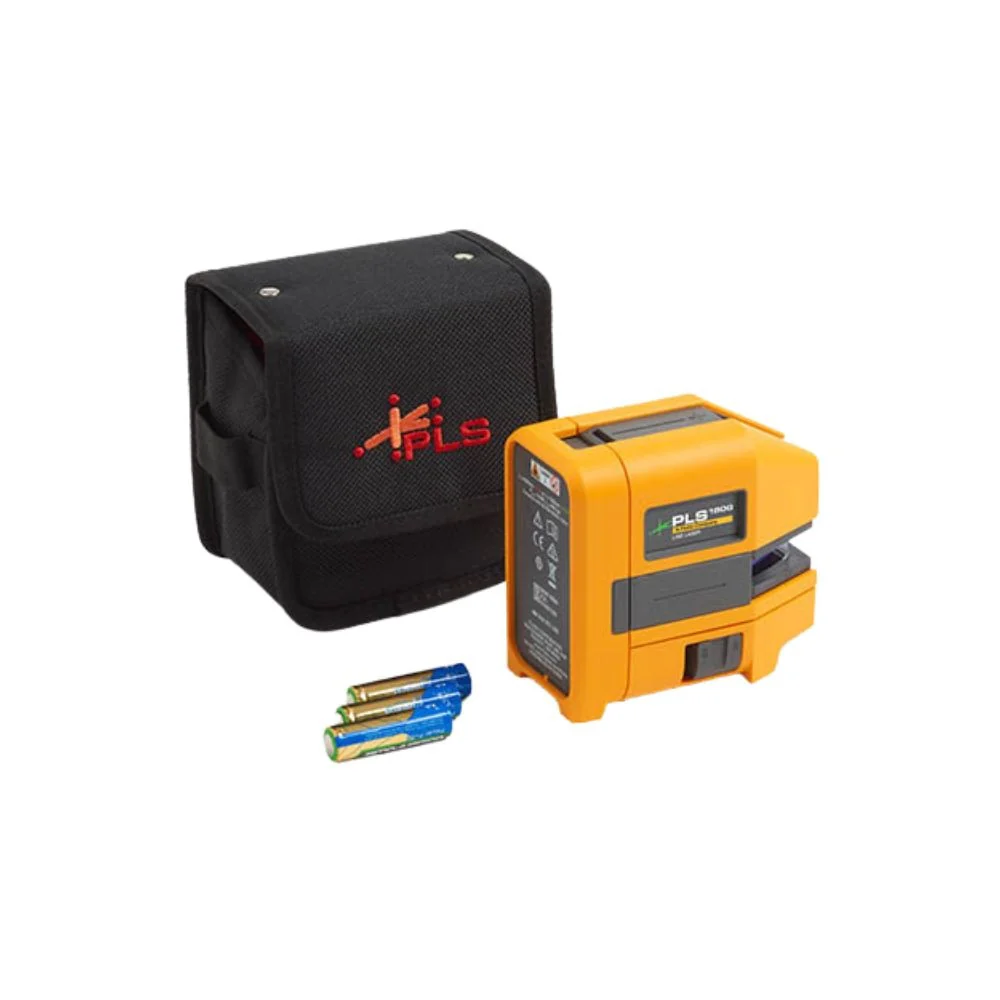

Pacific Laser Systems 5017287 Includes
- (1) PLS 180G Laser level
- (1) PLS-60573 Canvas pouch
- (3) PLS BP5 Alkaline battery pack with AA batteries
- (1) Bracket knob (for use with older PLS floor stand and magnetic L-brackets)
- (1) Quick Reference Guide
- (1) Safety Documentation
Pacific Laser Systems 5017287 Features
- Green Cross Line Laser Level
- Class II Green Laser
- Self-leveling within ±4 degrees
- Pendulum Lock
| Specifications | |
| Battery | RBP5 Rechargeable Battery Pack |
| Battery Life, Continuous Use | 30 hours (with RBP5 Battery Pack) |

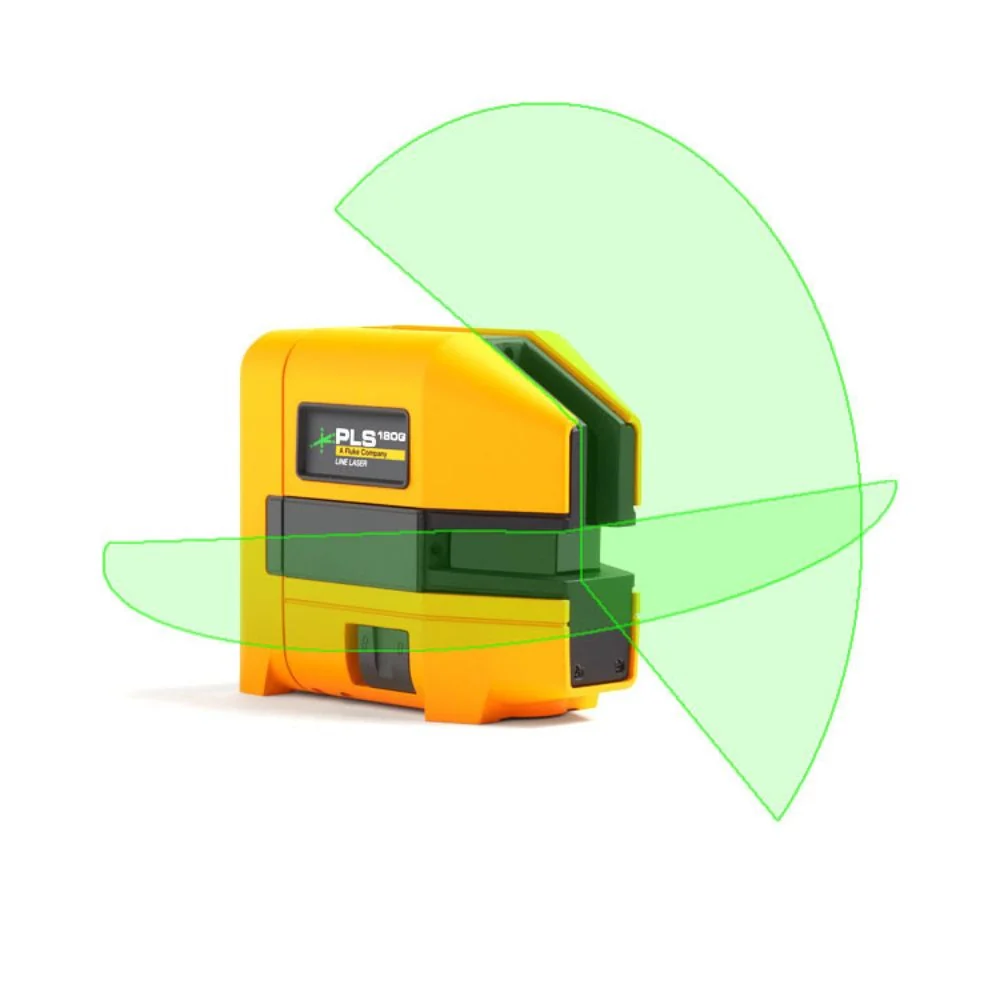

| Line Fan Angle | |
| Horizontal | = 180° |
| Vertical | = 130° |
| Working Range | |
| Point Laser (6 only) | =30 m (100 ft.) |
| Line Laser | |
| Without SLD | =15 m (50 ft.) |
| With SLD | 6 m to 60 m (20 ft. to 200 ft.) |
| Accuracy | =3 mm @ 10 m (=1/8 in at 30 ft.) |
| Laser Leveling | |
| System | Automatic, Pendulum |
| Range | 4° |
| Line Laser Width | =2 mm at 5 m |
| Temperature | |
| Operating | -10 °C to 50 °C (14 °F to 122 °F) |
| Storage | |
| With Batteries | -18 °C to 50 °C (-0.4 °F to 122 °F) |
| Without Batteries | -20 °C to 70 °C (-13 °F to 158 °F) |
| Relative Humidity | 0 % to 90 % (0 °C to 35 °C) |
| 0 % to 75 % (35 °C to 40 °C) | |
| 0 % to 45 % (40 °C to 50 °C) | |
| Size (H x W x L) | 116 mm x 64 mm x 104 mm (4.6 in x 2.5 in x 4.1 in) |
| Weight | ~ 0.6 kg (1.3 lb.) |
| Safety | IEC 61010-1: Pollution Degree 2 |
| Laser | IEC 60825-1:2014 Class 2 |
| Light Source | Semiconductor laser diode |
| Max Output Power | < 1 mW |
| Wavelength | 525 nm ± 5 nm |
| Electromagnetic compatibility (EMC) | |
| International | IEC 61326-1: Basic Electromagnetic Environment CISPR 11: Group 1, Class B |
| Group 1: Equipment has intentionally generated and/or uses conductively-coupled radio frequency energy that is necessary for the internal function of the equipment itself. | |
| Class B: Equipment is suitable for use in domestic establishments and in establishments directly connected to a low voltage power supply network which supplies buildings used for domestic purposes. | |
| Emissions that exceed the levels required by CISPR 11 can occur when the equipment is connected to a test object | |
| Korea (KCC) | Class B Equipment (Broadcast communications equipment for home) |
| USA (FCC) | 47 CFR 15 subpart B. This product is considered an exempt device per clause 15.103. |
